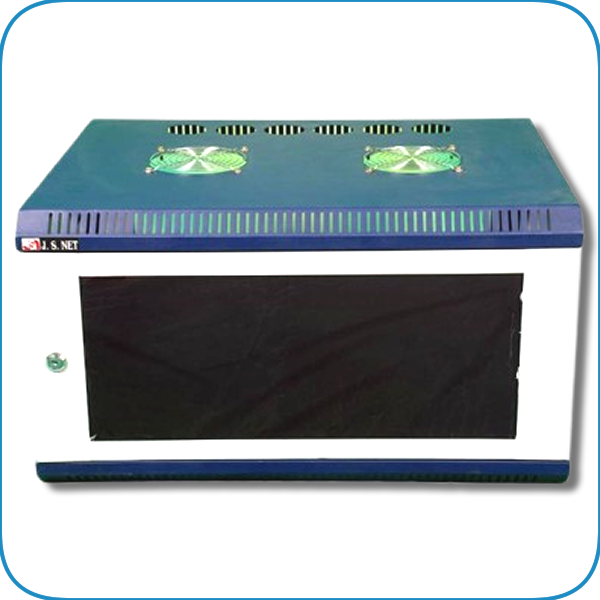

WALL MOUNT RACK
Redefining Industrial Rack Standards
The wall mount racks are best suited for the modern off1ce environment. The racks are available in either single or double section configuration. Rigidity is provided to the structure due to the welded frame and modular construction. Optimal flexibility for cable management is provided by top and bottom cable entry.
Racks made with CRCA Sheet on CNC machines and welded construction type for its rigidness (material used 1mm for better load carrying capacity).
Finish with 07 tanks acid wash process and powder coated with more then 70 microns.
Dual tone color combination for elegant look of product. ( Standard combination of RAL-7035 & IS-632 -Gray)
Both Sides vented for better air circulation & welded for its rigidness.
Front Door with dark Glass with suitable locking arrangement.
Size: (in mm)
| Product Code | Height | Width | Depth |
|---|---|---|---|
| 4U | 280 | 600 | 450/500/600 |
| 6U | 330 | 600 | 450/500/600 |
| 9U | 460 | 600 | 450/500/600 |
| 12U | 600 | 600 | 450/500/600 |
| 15U | 730 | 600 | 450/500/600 |
