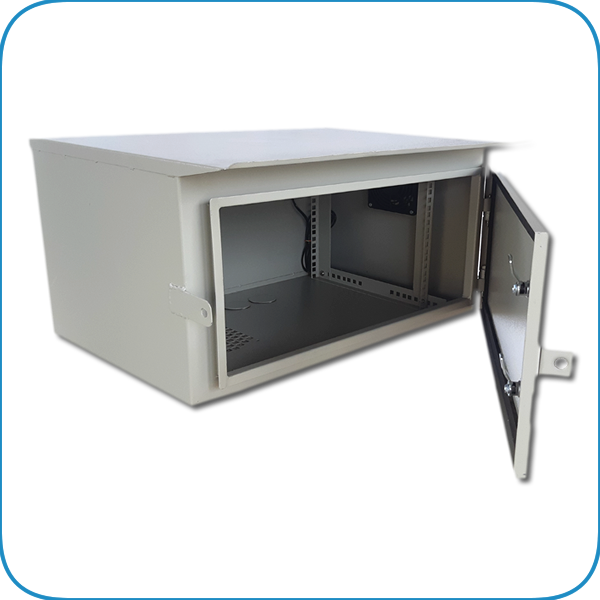

OUTDOOR WALL MOUNT RACK
Networking Made Easy
Racks made with CRCA Sheet on CNC machines and welded construction type for its rigidness and good load carring capacity.
Finish with 07 tanks acid wash process and powder coated with more then 70 microns. Standard RAL 7035 or 7032 color.
Fan with Canopy for air circulation, suitable filters for air inlatefor.
Front Door with Gasket with suitable locking arrangement.
Conforms IP55 Standards.
Arrangements for wall - pole mouning applications.
Size: (in mm)
| Product Code | Height | Width | Depth |
|---|---|---|---|
| 4U | 280 | 600 | 450/500/600 |
| 6U | 330 | 600 | 450/500/600 |
| 9U | 460 | 600 | 450/500/600 |
| 12U | 600 | 600 | 450/500/600 |
| 15U | 730 | 600 | 450/500/600 |
